    Shimadzu Analytical and Measuring Instruments for Analyzing / Evaluating Electronic Devices

    Explore the Latest Automotive Technologies and Solutions from Shimadzu exclusively at Auto EV India 2022 from 9th to 11th November 2022 at KTPO Bengaluru.

    Electronic devices and semiconductor technologies support a variety of industries and add comfort to our lives. Shimadzu develops and manufactures a wide range of instruments to help manufacturers conduct quality control of electronic devices and comply with regulations and directives.

    This compilation gives you an insight into the equipment and related applications such as observation of minute parts, elemental analysis, evaluation of optical properties, measurement of hazardous substances, and evaluation of mechanical properties.

    Micro-Area Observation and Elemental Analysis

    Submicron Contaminant Analysis and Elemental Analysis of Intermetallic Compounds, Such as Solder Joints for Mounted Devices

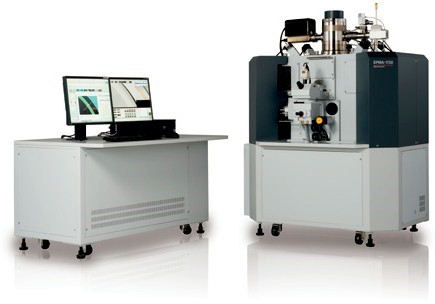

    Electron Probe Microanalyzer

    EPMA-1720 Series

    Using only simple mouse operations, EPMA-1720 series microanalyzers can reveal the micron, submicron and even nano-level microstructures in electrical/electronic materials.

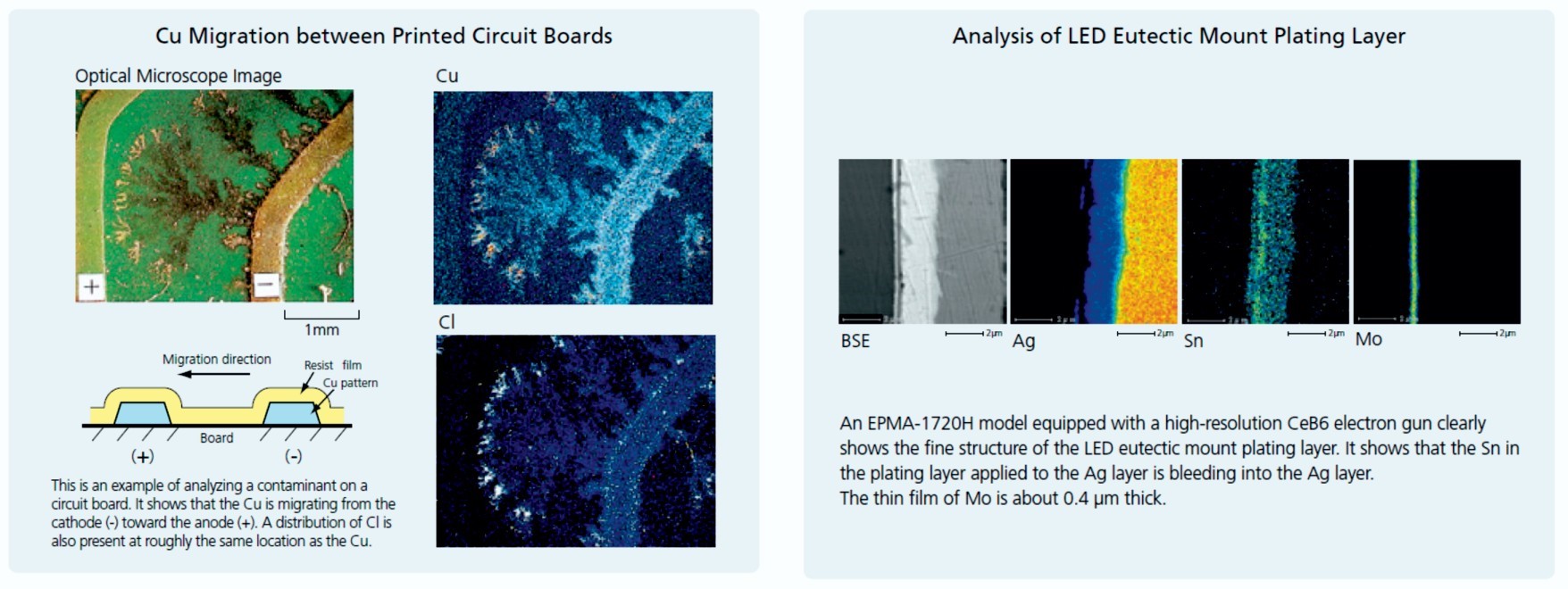

    • Enables analysis of submicron-level contaminants or the identity, shape and quantity of
    • Non-uniformities and segregations can be determined from element distributions over a large 90×90mm
    • Multiple samples can be analyzed successively without human intervention

    Elemental Analysis and Chemical State Analysis

    Composition/Bond State Analysis of a Sample’s Surface and Metal Surface Discoloration Analysis

    Imaging X-Ray Photoelectron Spectrometer

    AXIS-Supra Plus

    Automated Imaging X-ray Photoelectron Spectrometer

    Ÿ  Overview

    XPS (or ESCA) is a method that measures the bond energy of photoelectrons emitted from solid surfaces irradiated with soft X-rays to analyze the type of elements present in substances and their chemical bond state.

    Given that the escape depth of photoelectrons is only a few nanometers, information can only be obtained from layers closest to the surface of solids.

    This method contributes to applications essential for developing nanotechnologies, such as evaluating thin films or multilayer films, controlling contamination of material surfaces and evaluating polymer surface treatments.

    Ÿ Features

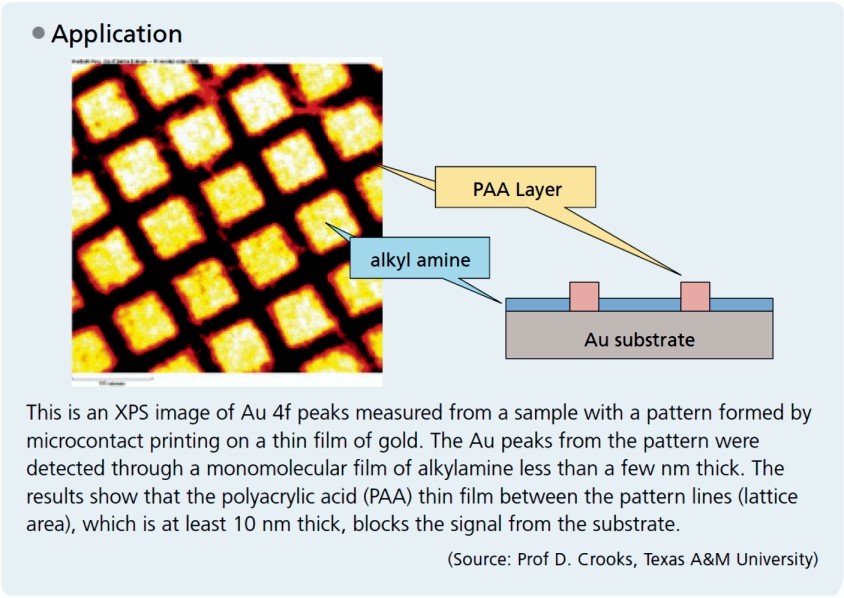

    Equipped with high-speed XPS imaging functionality based on an imaging-specific analyzer, the system can instantaneously determine the distribution status of elements or chemicals on substance surfaces.

    Non-Destructive Observation of Interior Objects

    Observation of Internal Structures in Electrical/Electronic Components and Failure Analysis

    inspeXio SMX-225CT HR Plus

    Ÿ With an exterior camera for CT scan positioning, functionality for automatically setting X-ray parameters based on the given sample and other features, high-definition three-dimensional CT images can be obtained using simple operations without any need for tedious steps.

    Ÿ Due to the powerful X-ray generator, with a 4 µm focus size and 225 kV tube voltage, the system can be used to inspect a wide range of items.

    Microfocus X-Ray CT System

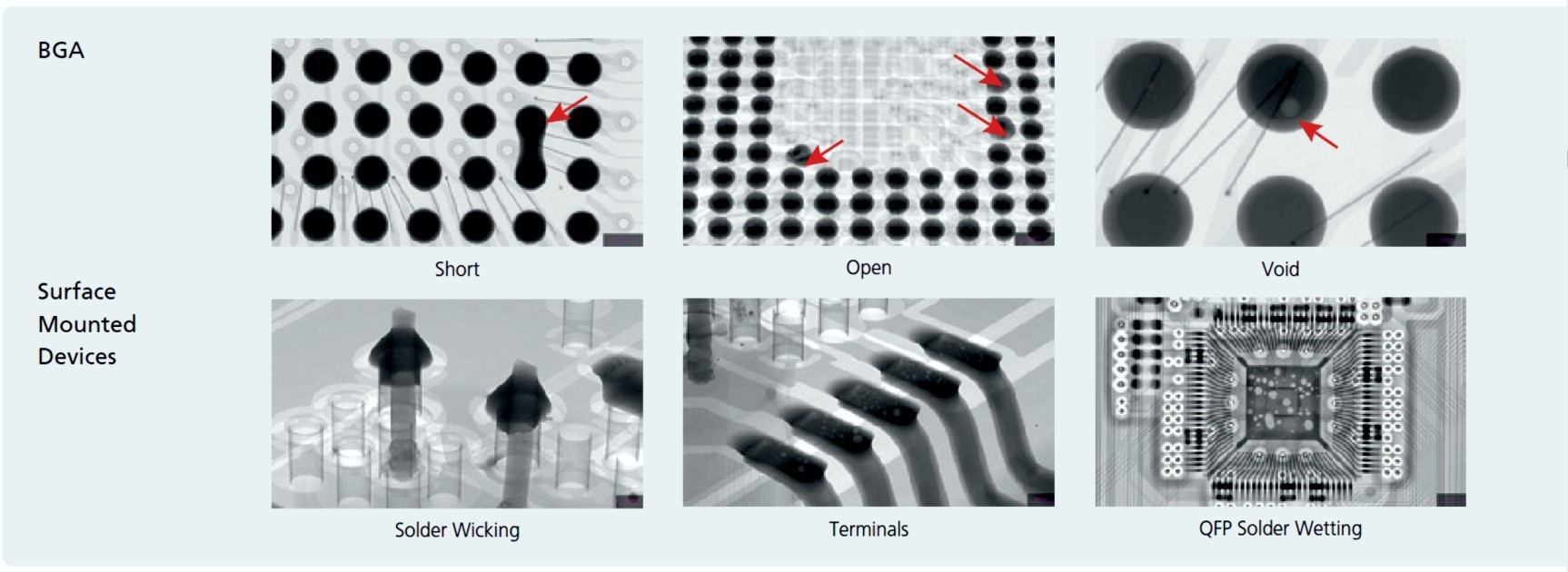

    Inspection of Solder Joints on Mounted Circuit Boards (BGA Joints, etc.)

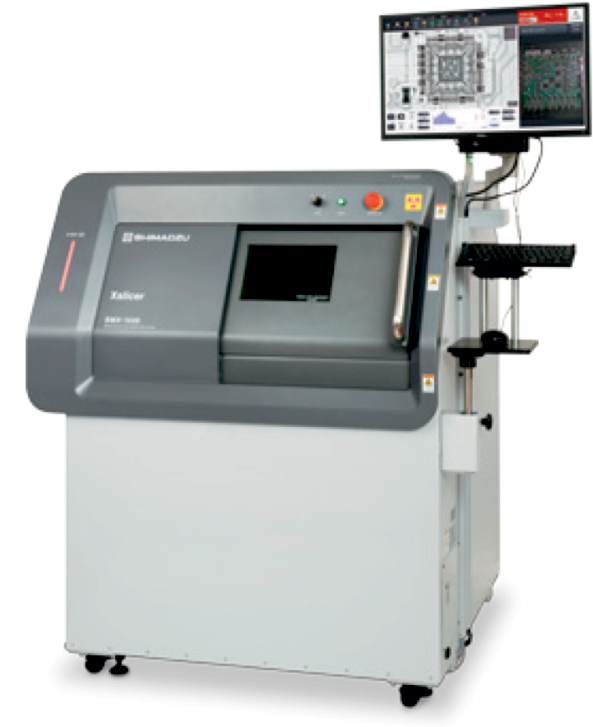

    Microfocus X-Ray Inspection System

    Xslicer SMX-1010 / 1020

    • In addition to easier operation, the stage movement and detector acquisition speeds were increased to significantly shorten inspection times. Consequently, inspection operations can be accomplished more efficiently. Xslicer SMX-1010/1020 systems can be used to inspect a wide range of electrical and electronic components, from surface mounted circuit boards to various sensors and cable harnesses.
    • CT functionality is available as an
    • A dedicated NDI X-ray pay-as-you-go X-ray generator maintenance service is available for paying only for the X-ray emission time actually used.

    Evaluation of Additives and Hazardous Substances

    Measurement of Hazardous Substances

    Screening for Elements Regulated by RoHS/ELV Directives

    Analysis of Elements in Layer Structure and Elemental Analysis of Contaminants

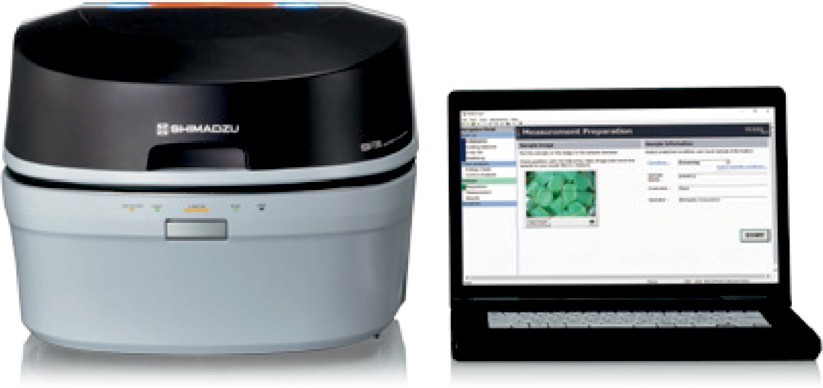

    Energy Dispersive X-Ray Fluorescence Spectrometer

    EDX-7200 / 8100

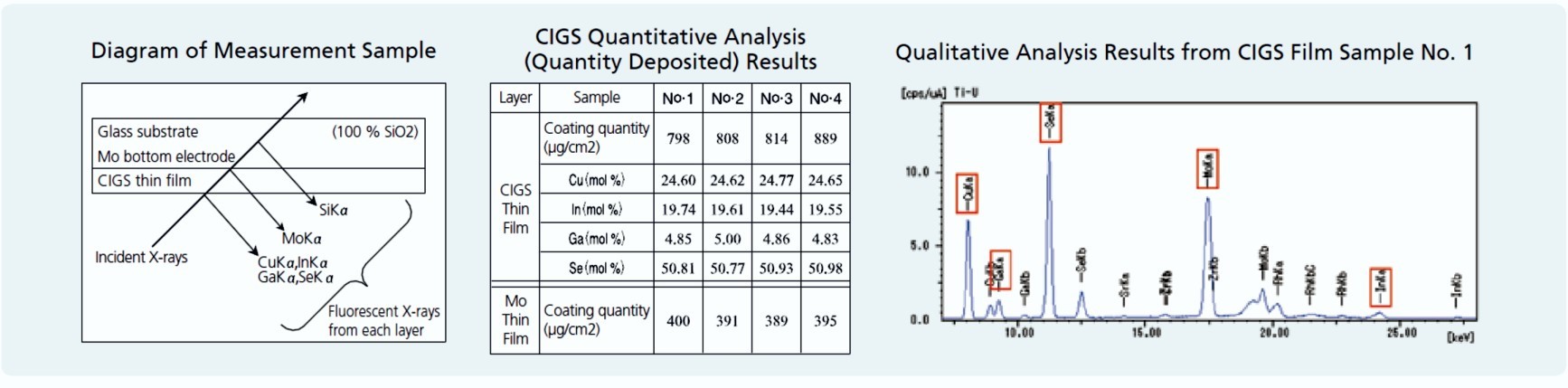

    Compound-type solar cells are made by depositing a thin film of a compound on a substrate by sputtering or another method. Energy dispersive X-ray Fluorescence spectrometers provide a very convenient means of quickly and non-destructively measuring CIGS thin films.

    Evaluation of Strength

    Various Strength Evaluations of Electronic Components, Circuit Boards, etc. (Peeling Test, Shearing Test, etc.)

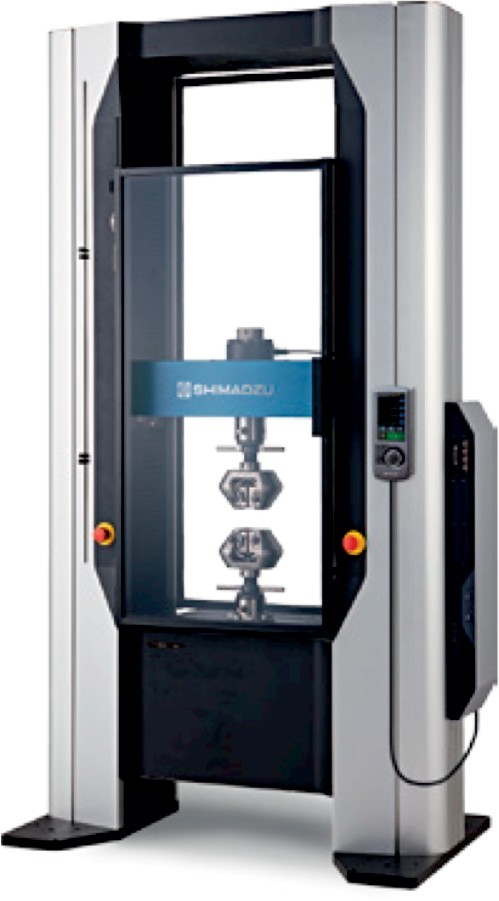

    Precision Universal Testing Machine

    AGX-V Series

    These motor-actuated precision universal testing machines provide high performance, easy operability, and safety. In addition to a wider range  of speeds, higher rigidity, a load cell that increases the guaranteed measurement precision range to 1/2000, and other basic performance improvements, these models also feature a newly designed controller that supports even more complex testing methods. Furthermore, the crosshead position is remembered even when the power is switched OFF to make setting the grip space easier and built-in functionality prevents instrument collisions. The software includes additional functionality without sacrificing ease of operation.



    • Evaluate the solder joint strength of electronic components soldered to printed circuit
    • Measure the tensile strength of resist and insulator films on printed circuit
    • Evaluate the force required to connect/disconnect connector
    • Perform solder joint peeling
    EZ-X Series

    This stylish compact testing machine is packed with extensive functionality for convenient and efficient testing operations.

    Compact Tabletop Testing Machine

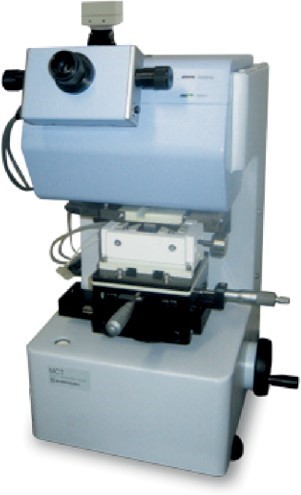

    MCT Series

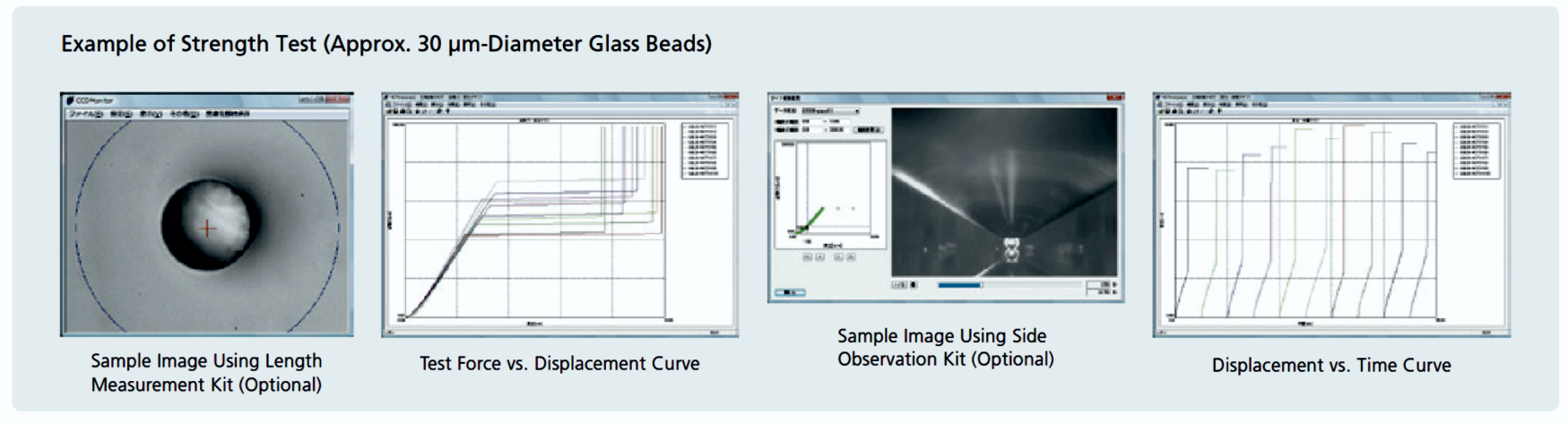

    These models can measure the compression strength of single particles (1 µm diameter or larger). They can be used to evaluate the strength of individual particles, such as LCD panel spacers or plasma display ribs, or the strength in extremely small areas.
