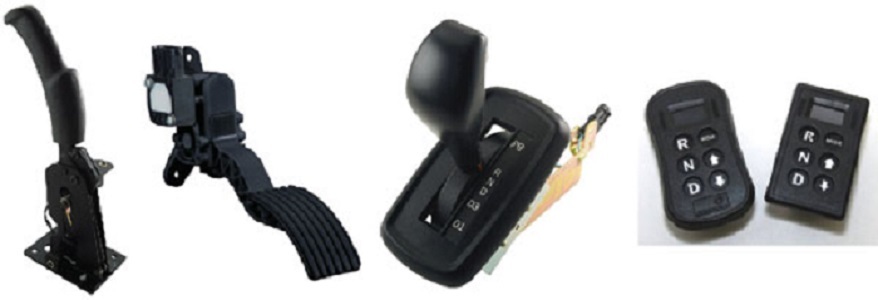

Orscheln designs and manufactures electronic throttle controls for engines used in On-Highway and Off-Highway applications.
Electronic Throttle Pedals are offered in floor-mounted and suspended designs. Each delivers a precise signal that interacts with the engine’s electronic fuel management systems. The fast-reacting pedals provide smooth driver operation and feature a durable, longer-life programmable Orscheln Products Sensor. Polymer components create a lightweight pedal, as much as half the weight of current pedals in the marketplace. Steel base plates are available upon request.
The product benefits include-
- Smooth responsive interface
- Precision signal engineering
- Support for design and application
- 100% end-of-line testing
- Electrically independent dual programmable outputs
- Programming options include analog or PWM output, increasing or decreasing signal, custom open and closed throttle signal levels
- Options for metal or polymer design
- Floor Mount or Suspended Foot Pedal Assemblies
- Hand Throttle Assemblies
- Custom Designs
- IP67,-40°C to 85°C operation range
- Tested to SAEJ1455
Electronic Foot Pedals
Electronic Throttle Pedals are offered in floor mounted and suspended designs. Each delivers a precise signal that interacts with the engine’s electronic fuel management systems. The fast-reacting pedals provide smooth driver operation and feature a durable, longer-life programmable Orscheln Products Sensor. Polymer components create a lightweight pedal, as much as half the weight of current pedals in the marketplace. Steel base plates are available upon request.

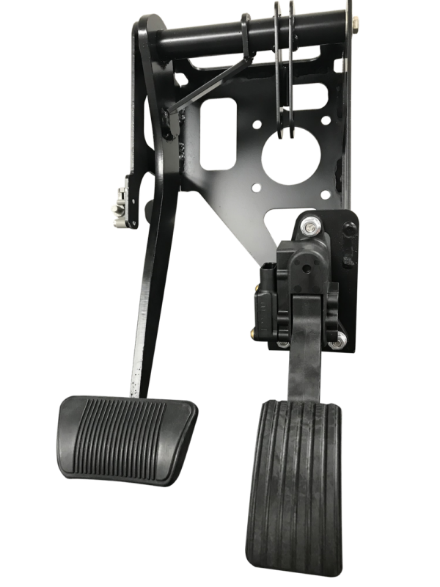

Pedal Cluster
A “Pedal Cluster”, aka “Pedal Box”, is fabricated with the electronic throttle and brake pedal custom made into a metal assembly. This assembly will save engineering and development time upfront and can eliminate over a dozen parts for the OEM assembler. It also saves considerable time at the vehicle assembly line. Orscheln has 25 plus years producing electronic throttle controls for commercial on and off-highway equipment. This capability, along with its broad design skills, metal fabrication, and in-house test lab, makes for a big plus for newer design Zero Emission vehicles.
EV2 Vernier Control
The EV2 vernier control is hand operated for precise, variable engine speed adjustment on electronically controlled stationary engines, or from a remote operating position on mobile equipment. It uses a linear potentiometer to translate mechanical position to an electrical signal in order to control the engine from a remote location.

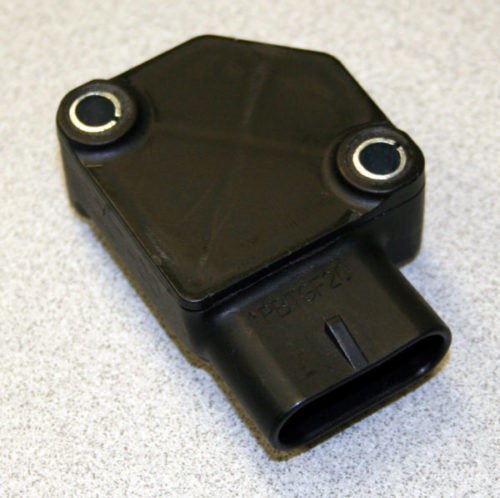

Dual output Hall effect sensor
The Orscheln Hall-Effect Sensor has dual, electrically independent and independently programmed sensors. Redundant sensors meet FMVSS requirements and allow for fast, accurate and correlated verification of sensor angle by the engine’s electronic fuel management systems.
They find their applications in Trucks, Buses, Motorhomes, Construction Machinery, Farm Machinery, and Delivery Vehicles.
Intensive customer and Orscheln Products specified test procedures ensure each pedal is delivered at the highest level of quality ensuring reliability and durability.
Courtesy: Orscheln Products
